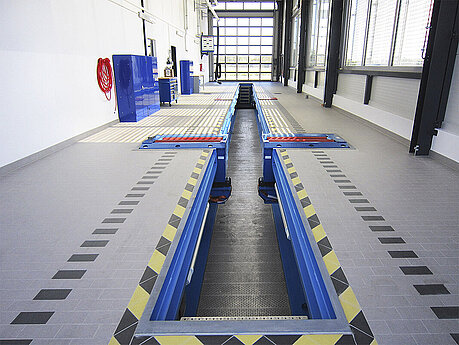

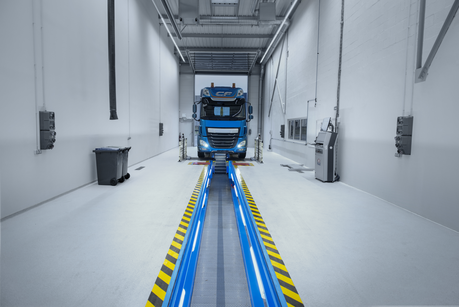

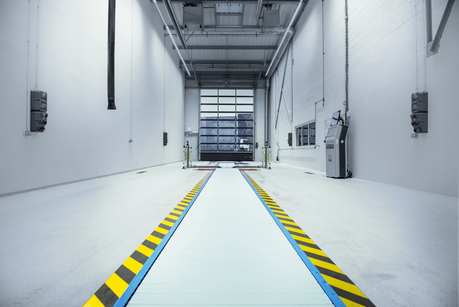

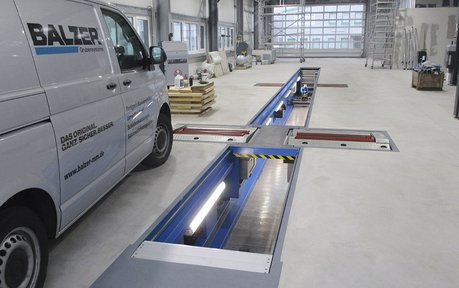

Test lane for HGV/bus

Type MSG 102 P

  • One-piece prefabricated assembly pit with a filling chamber construction.
  • Self-supporting filling chamber with honeycomb construction with integrated formwork and reinforcement.

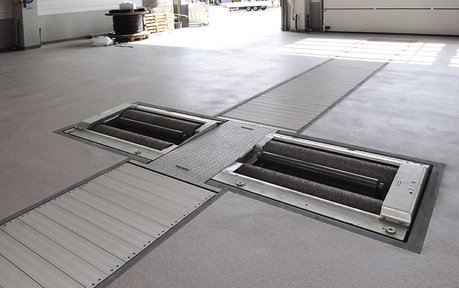

  • Various equipment features such as brake test rig, pulldown assembly, play detector, wheel arch tester, slide covers and much more.
  • Combined testing and service pits are available.
  • Accessories are completely assembled, piped and wired at the factory according to consultation and planning.
  • Project-based CAD planning.
  • Installation time in max. 5 hours per system, thanks to the special assembly technology.
  • Clearly defined construction interfaces.
  • A specialist company according to WHG (Waste Water Act).
  • Static tests of the prefabricated assembly pit with a filling chamber construction available.
  • Meets waste water protection requirements according to WHG/VAwS (AwSV) / TRwS (779 / 785 / 786) and all specifications of DGUV 109.
  • Approved, type-tested and certified by the German Institute for Building Technology (DIBt - No. Sec.-38.5-278).
  • ISO 9001:2015 certified production facility.
  • DIN EN 1090 certified production facility.
  • Various patents have been granted.
  • Top product quality.
  • MADE in Germany

Technical details

Technical description:

Axle load:20 t
Live load:according to SLW 60, DIN EN 1991-1-1:2010-12, DIN EN 1991-1-1 / NA:2010-12, DIN technical report 101:2009-03 and DIN 4085 supplementary sheet 1:2011-12.
Length:according to customer requirements
Inner width:1.02 m i.L.
Working width:1.62 m i.L.
Standing height:according to customer requirements

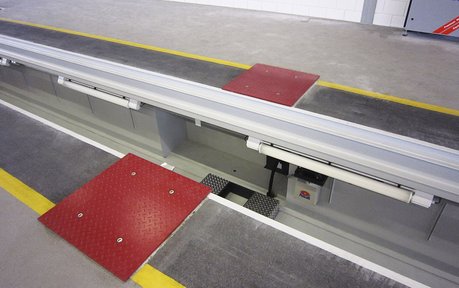

All connections are provided in accordance with the planning for electrics, compressed air, exhaust air, brake test rig, play detector and pit drainage. The prefabricated assembly pit has a double pit frame which means that slide covers, pit jacks, support bridges, etc. can be installed.

Accessories: examples include electrical installation, lighting, compressed air, exhaust air, brake test rig, pulldown assembly, play detector, pit jacks, support systems and much more.

We have the solution to every challenge. Let one of our specialists offer you individual advice on your project.
